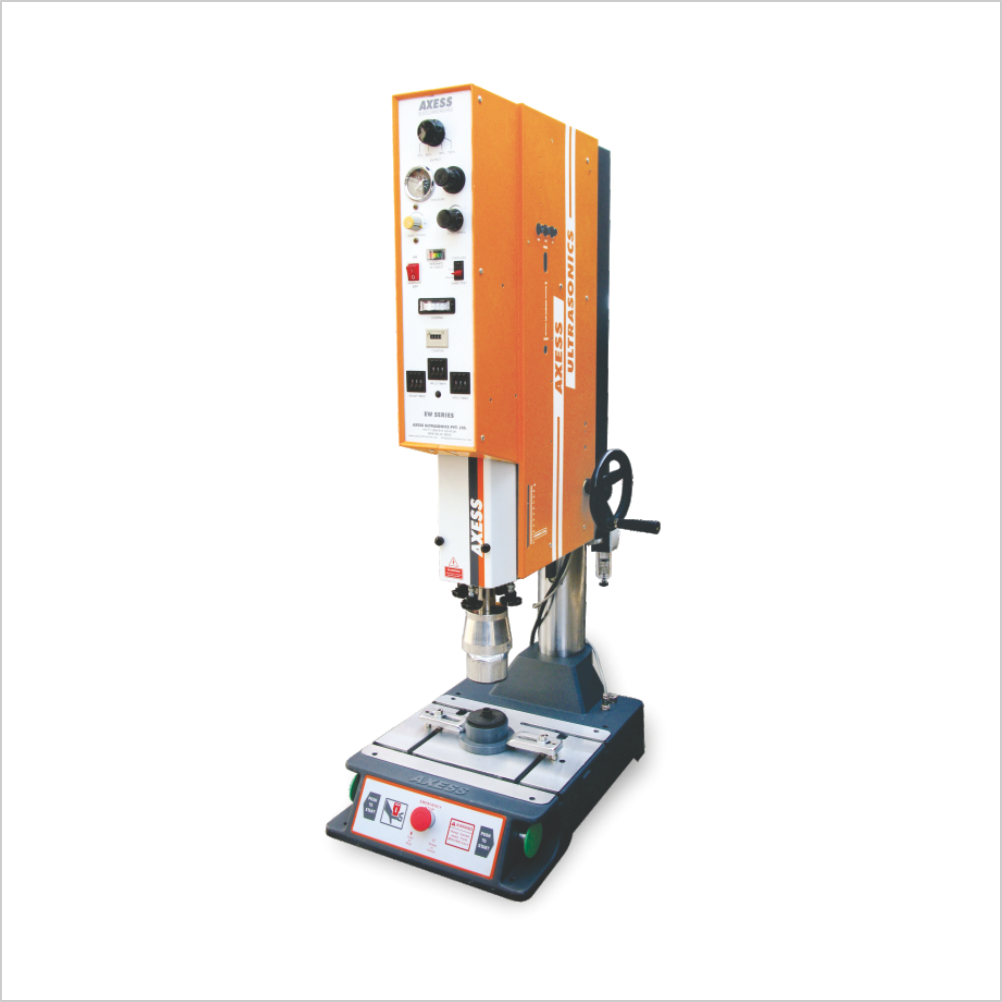

Ultrasonic Plastic Welding Machine

An ultrasonic plastic welding machine uses high frequency mechanical vibrations to join thermoplastic parts without external heat, glue, or screws. Typical industrial units operate at frequencies of 15 kHz to 40 kHz with power outputs ranging from 800W to over 4200W

Key Components and Specifications

• Generator & Transducer: Converts electrical power into high-frequency acoustic vibrations.

• Booster & Horn (Sonotrode): Transmits and amplifies the vibrational energy directly onto the plastic parts.

• Pneumatic Press: Applies precise downward clamping force during the weld and hold cycles.

• Common Frequencies: 15 kHz (large parts), 20 kHz (general purpose), and 30–40 kHz (small, delicate components).

• Material Compatibility: Works efficiently with ABS, PP, PE, PC, PVC, and other thermoplastics.

Applications and Benefits

• Fast Cycle Times: Welds complete in fractions of a second, making it ideal for mass production.

• Clean Process: Requires no consumables, fumes, or chemical adhesives.

• Industries: Extensively used in automotive component assembly, medical device manufacturing, electronics housings, and toy production.
